G6 AI BOX PC
Model:
Industrial rugged design with a fanless cooling system
RK3588 Octa-core (4×A76+4×A55)
6TOPS Native AI, 13/26TOPS Accelerator Expandable
8GB/16GB Large Memory Option
64GB/128GB eMMC + 2×M.2 2280 SATA/NVME SSD Expansion
8pin GPIO, customizable compilation
HDMI 2.1 (up to 8K@60Hz) + HDMI In
1×Full-Featured Type-C: One Port for Data, Video & Power, Ultimate Expansion lexibility
Dual-Gigabit Ethernet
Supports Ubuntu 22.04 operating systems.
Industrial rugged design with a fanless cooling system
RK3588 Octa-core (4×A76+4×A55)
6TOPS Native AI, 13/26TOPS Accelerator Expandable
8GB/16GB Large Memory Option
64GB/128GB eMMC + 2×M.2 2280 SATA/NVME SSD Expansion
8pin GPIO, customizable compilation
HDMI 2.1 (up to 8K@60Hz) + HDMI In
1×Full-Featured Type-C: One Port for Data, Video & Power, Ultimate Expansion lexibility
Dual-Gigabit Ethernet
Supports Ubuntu 22.04 operating systems.

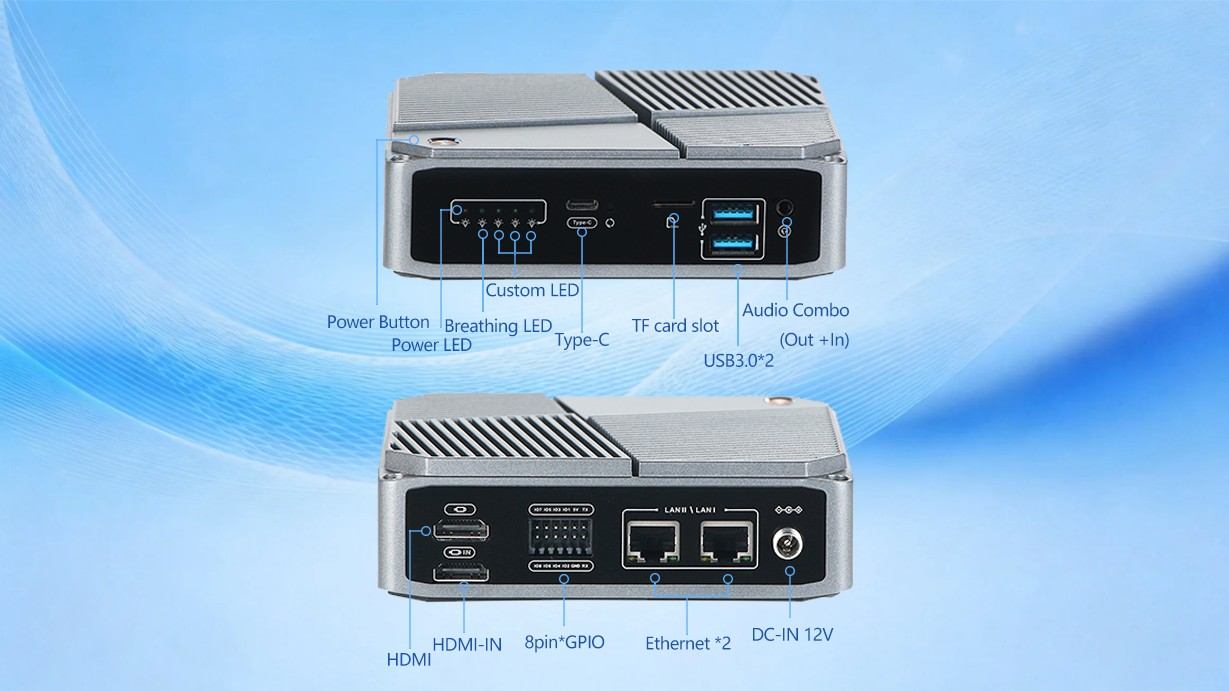

G6 AI BOX PC is powered by Rockchip RK3588, integrating 4Cortex-A76 + 4Cortex-A55 CPUs, 6TOPS NPU (expandable 13/26TOPS), 8GB/16GB memory and dual SSD expansion. It supports 8K@60Hz video encoding/decoding, dual-gigabit Ethernet, full-featured Type-C and rich I/O, with a compact fanless design for reliable 24/7 operation.
Featuring wide temperature support and Ubuntu compatibility, it is ideal for industrial vision, edge AI computing, smart surveillance, IoT gateways and embedded AI applications, delivering powerful, efficient edge intelligence for diverse scenarios.
-
Part No.G6-RK3588-F25
-
-
System
SOC
4*Cortex-A76 + 4*Cortex-A55
CPU
Rockchip RK3588
NPU
6TOPS, Scalable from 13/26 TOPS
Memory
8GB / 16GB
Storage & Expansion
EMMC 64G/128GB； 2*SSD （M.2 2280 SATA/NVME）
-
Video
GPU
Mali-G610
Hardware Codec
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）；8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
Display Interfaces
1*HDMI2.1；1*HDMI in. 4K resolution output,up to 8K@60HZ; Supports video input
-
Network
Ethernet
Dual-Gigabit Ethernet
Wireless Network
NOT
-
I/O
USB
2*USB3.0
Audio
Audio Combo(Out +In)
I/O
8pin*GPIO
Type-c
1*Universal Type-C
-
Others
Watchdog
Supports customization
RTC
Supported
-
Power supply
Power Input
DC 12V - 2A
Buttons/Indicators
Red/Green
-
Physical Parameters
Enclosure Dimension
129*113*39mm
Package Dimensions
244*187*62mm
Net Weight
0.47 KG
Gross Weight
0.95 KG
-
Software
Operating System
Ubuntu22.04
-
Environment
Working Temperature
-20~60°C (-4°~140°F)
Storage Temperature
-20~60°C (-4°~140°F)
Working/Storage Humidity
Relative Humidity:0~85%（No Condensation）/ Relative Humidity:0~85% （No Condensation）
Safety Certifications
CCC，CE
-
SOC
G6-RK3588-F25
4*Cortex-A76 + 4*Cortex-A55
-
CPU
G6-RK3588-F25
Rockchip RK3588
-
NPU
G6-RK3588-F25
6TOPS, Scalable from 13/26 TOPS
-
Memory
G6-RK3588-F25
8GB / 16GB
-
Storage & Expansion
G6-RK3588-F25
EMMC 64G/128GB； 2*SSD （M.2 2280 SATA/NVME）
-
GPU
G6-RK3588-F25
Mali-G610
-
Hardware Codec
G6-RK3588-F25
JPEG Encoder/Decoder；8K Video Encoder (H265/H264...）；8K 10-bits Video Decoder (H265/H264/VP9/AV1...)
-
Display Interfaces
G6-RK3588-F25
1*HDMI2.1；1*HDMI in. 4K resolution output,up to 8K@60HZ; Supports video input
-
Ethernet
G6-RK3588-F25
Dual-Gigabit Ethernet
-
Wireless Network
G6-RK3588-F25
NOT
-
USB
G6-RK3588-F25
2*USB3.0
-
Audio
G6-RK3588-F25
Audio Combo(Out +In)
-
I/O
G6-RK3588-F25
8pin*GPIO
-
Type-c
G6-RK3588-F25
1*Universal Type-C
-
Watchdog
G6-RK3588-F25
Supports customization
-
RTC
G6-RK3588-F25
Supported
-
Power Input
G6-RK3588-F25
DC 12V - 2A
-
Buttons/Indicators
G6-RK3588-F25
Red/Green
-
Enclosure Dimension
G6-RK3588-F25
129*113*39mm
-
Package Dimensions
G6-RK3588-F25
244*187*62mm
-
Net Weight
G6-RK3588-F25
0.47 KG
-
Gross Weight
G6-RK3588-F25
0.95 KG
-
Operating System
G6-RK3588-F25
Ubuntu22.04
-
Working Temperature
G6-RK3588-F25
-20~60°C (-4°~140°F)
-
Storage Temperature
G6-RK3588-F25
-20~60°C (-4°~140°F)
-
Working/Storage Humidity
G6-RK3588-F25
Relative Humidity:0~85%（No Condensation）/ Relative Humidity:0~85% （No Condensation）
-
Safety Certifications
G6-RK3588-F25
CCC，CE
